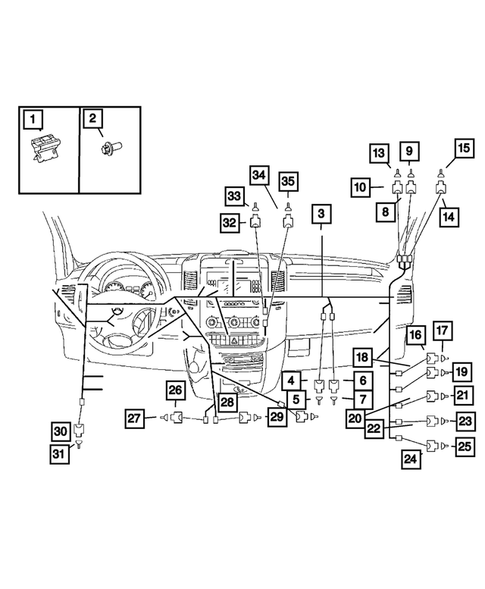

Wiring-Instrument Panel for 2007 Dodge Sprinter 3500
No.
Part # / Description / Price
Price
N/A
N/A
Connector
Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: [S 98] Cover
1
Bracket Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: Mounting Wiring Harness to Transmission Oil Lines 13x18MM
2
Hex Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: M8x1.25x20.00. Oil Pan Upper Gallery Plug To Cylinder Block
MSRP $4.95
$3.57
MSRP $4.95
$3.57
3
Instrument Panel Wiring Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: See Note
4
Wiring Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: [2 Pin ; X28/46]
5
Terminal Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: [X28/46]
6
Wiring Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: [2 Pin; X28/46]
7
Terminal Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: [X28/46]
8
Connector, Right, Rear Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: 68011247AA. [6 Pin; X8/21]
9
Terminal Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: [1.5 - 2.5 MM2; SLK; N28/1]
10
Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: Cockpit Interior Plug Connector [28 Pin MQS, X18/56]
13
Terminal Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: [0.75 MM2 MQS - N1 5/5]
14
Insulator Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: 2 Way Female. Cockpit Connector Roof [2 Pin; X85/22]
15
Female Terminal Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: [0.5 - 1.0 MM2; 6.3; E46/1, E46/2, E46/3]
16
Insulator Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: 6 Way. Cockpit Interior Plug Connector [6 Pin, X169/7]
17
Male Terminal Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: [0.75 MM2; X43/11; X43/12]
18
Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: [28 Pin; X18/51 B]
20
Wiring Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: [18 Pin;X15/55]
22
Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: CTEL Bracket 10-PIN;A34/7
24
Connector, Left, Rear Door Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: [4 Pin; X8/23]
25
Terminal Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: [1.5 - 2.5 MM2 SLK 2.8, X18 / 23 S]
26
Wiring Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: Tach Connector [4 Pin; X2/5]
27
Terminal Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: [0.5 - 1.0 MM2; X18/53]
30
Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: [1 PIN;R22/2] With [NHW and GBG]
31
Terminal Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: [X53/8]
32
Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: Connector, Backup Camera; [6Pin; X169]
34
Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: Connector, Backup Camera [6 Pin; X169]

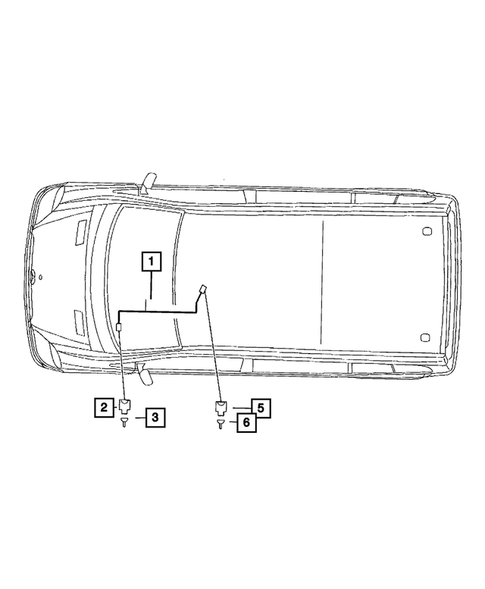

No.
Part # / Description / Price
Price
N/A
Gasket Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: [1.6 - 1.9 MM2; B10/6]
N/A
Gasket Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: [0.5 - 1.0 MM; Y58/1]
1
Wiring Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: With [LM2 Or LM3]
2
Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: Roof Refrigerant Pressure Sensor
3
Terminal Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: [0.75 MM2 MQS N33 / 3]
5
Insulator Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: Connector, Side Marker Lamps [3 Pin; X57/8 / X57/9]
